3.6V Lithium Battery Powered 4G wireless level sensor

  • 3.6V Lithium Battery Powered 4G wireless level sensor
  • 3.6V Lithium Battery Powered 4G wireless level sensor
  • 3.6V Lithium Battery Powered 4G wireless level sensor

3.6V Lithium Battery Powered 4G wireless level sensor

    Packaging: Box
    Brand: GAMICOS
    Supply Ability: 500 Piece/Pieces per Month
    Port: Shanghai Port

Basic Info

Model No.: GLT508

Product Description

GLT508 Wireless pressure transmitter
wireless level transmitter sends the collected level data to the cloud server through the NB-IoT or 4G network. It is widely used in the pipeline and multi-parameter monitoring of the petroleum, natural gas, water supply and drainage, hydrology and fire fighting etc. It is quite suitable for no power condition and a harsh environment.
Product Paramenters
Pressure Range
0mH O~2mH O...10mH O
Accuracy
≤±0.5%FS
Over Pressure
1.5 times FS
Pressure Type
Absolute/ Sealed Gauge
Long Term Stability
±0.5%FS/Year
Power Supply
3.6V@38Ah Lithium Battery/9V~ 36V DC
SIM Card
Nano SIM(12mm×9mm)
Keyboard
Panel key triggered
Display
LCD display
Weight
≥2.5kgs
Setting
In site/Remote control
Communication Mode
NB-IoT/4G
Communication Protocol
MQTT
Consumption
Average current at sending
status≤100mA3.6V DC, at sleep mode≤25uA 3.6V DC
Operation Temperature
-20℃ ~70℃
Storage Temperature
-40℃ ~85℃
Relative Humidity
0%~95%
Protection
IP65

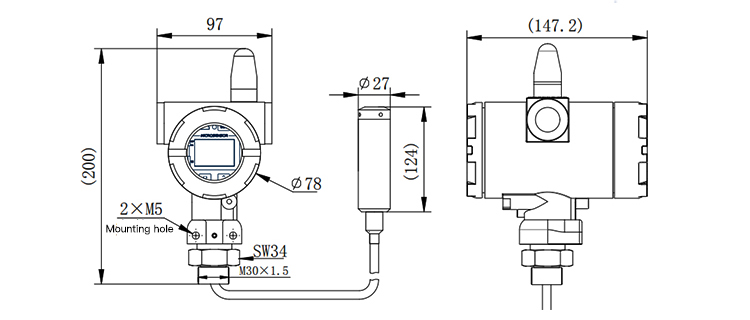

Dimension
Dimension
Application
Application
The transmitter can detect the real-time data of many monitoring points in a large area such as fire pool, drainage monitoring, agricultural and forestry irrigation, urban water supply, petrochemical and other fields that need unattended and remote monitoring.
FAQ
Q: Are you a manufacturer or trading company?
A: We are a 10-year professional manufacturer of Pressure/ Level/ Temperature/ Flow sensors with optional HART, RS485 & ModBus protocols, Micro Sensor offers pressure sensors with both mV output and standard analog/digital output such as SPI, I2C, 4~20mA, 0.5~4.5V RS485, Modbus, etc. as well as wireless IOT measurement devices.
Q: What's you manage control system?
A: As an ISO9001:2015, ISO14001, and ISO18001 certificated manufacturer, we have strict quality control and environmental management systems. Each product is done fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.
Q: Do you provide customized products?
A: Yes, OEM, ODM & customization are welcomed.
Q: What is the warranty for your products? And the after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales will respond to your questions in 24hrs, remote online instruction is always available.
Q: What is the lead time of your product?
A: We are factory, for standard mV sensors, we have inventory for less than 100pcs order; for standard analog or digital output transmitters, the general lead time is within 10~15 working days; for OEM/ODM/ customization, the lead time will vary based on different products. You can check detailed lead time with our sales.
Q: What international certificates do you have for your products?
A: We have CE, RoHS, UL, ATEX as well as ship-use DNV, etc.
Q: What payment methods are available?
A: You can pay your order via bank transfer, West Union, etc.
